Icarus Supercar 宇星模王 MOULDKING 13067

原作者 荒井円（Madoca1977），于2016年3月发布。
rebrickable 编号为 MOC-4562 。
原作使用4个L马达，一个伺服电机，2个SBrick及2个小锂电池盒，颗粒数为 1908。

原作者对作品的说明描述：

ntroduction

The name comes from a man who desired to fly higher using his technology.

Many times I have tried to realize the speed what supercar MOC should perform. I needed “wing” called buggy motor, but all I had is a bunch of PF motors. So I connected motors together using “wax” called SBrick. Like Icarus of Greek myth, higher speed and torque may be lethal for the model itself...

• Weight: 1760g
• Propulsion: 4x PF L motor for rear wheel drive
• Steering: PF Servo motor
• Front and rear lights: 2x PF light
• Powered by: 2x SBrick and 2x 8878 rechargeable battery box

Features:
- independent suspension for all wheels

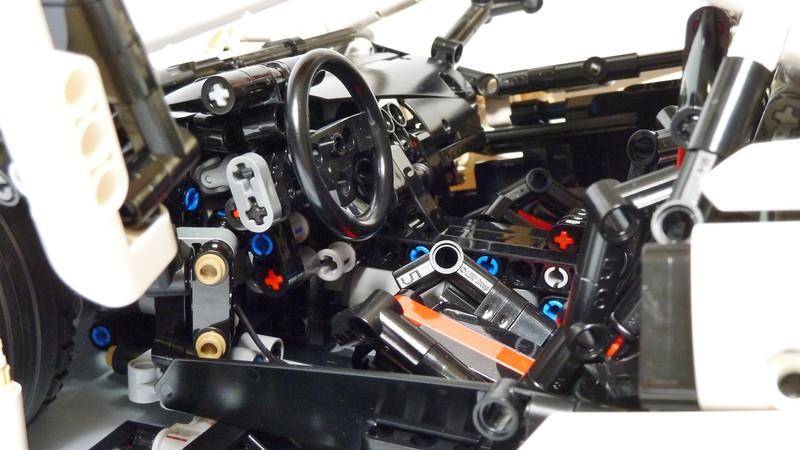

- working steering wheel
- manually adjustable rear spoiler

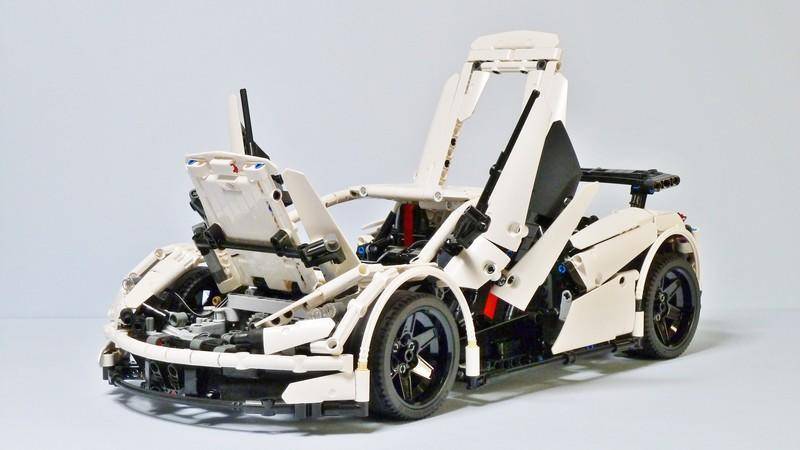

- opening doors, hood, engine cover, glove box

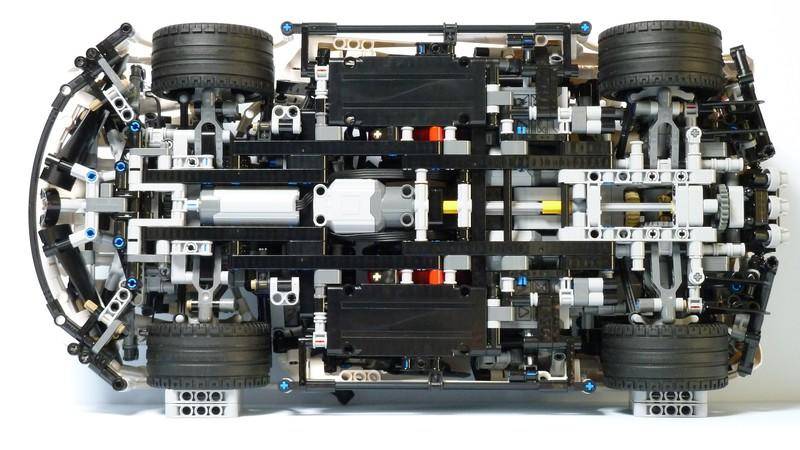

Drivetrain

You may think it is not fast enough, but for me it was a relatively success. Surprisingly, gears and CV joints have never damaged or popped out even at the time of maximum acceleration. :thumbup:

Although I had designed its drivetrain carefully, I was not sure if small bevel gears in differential withstand the load.

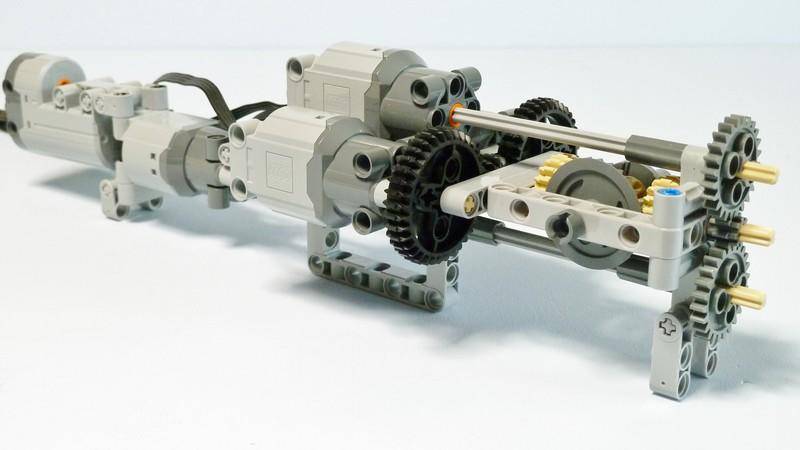

Two 20T bevel gears of each side divide the load from differential equally. In this setting differential doesn't move back and forth easily. That means differential and 20T bevel gears hardly ever disengage. So they keep rotating smoothly even under high load.

In this MOC there are three L motors (and two SBricks, two battery boxes, bunch of wiring) on the supposed location of V8 engine. So if someone build manual version with gearbox, there would be enough room for it.

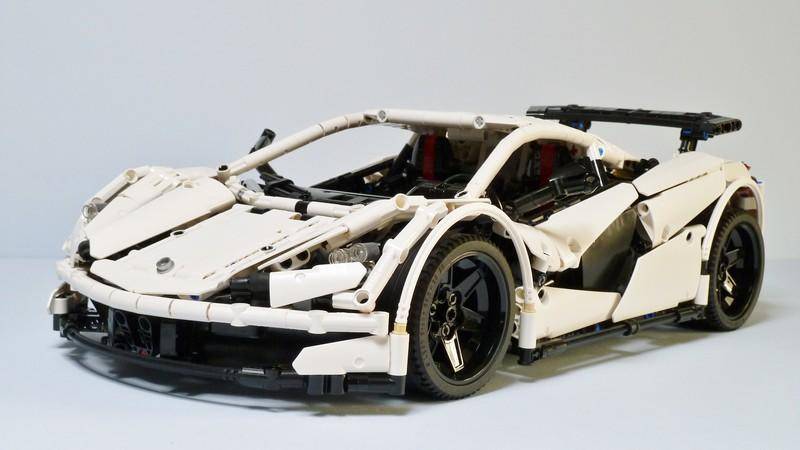

Body design

As expected, building 1:10 scale supercar was very hard. Especially the body work. I've built one three years ago, but it was primitive MOC in every way.

New MOC is heavily inspired by modern McLaren supercars. I tried to build their curved shapes using rather technic panels than flex axles. Front and rear light section happened to become different from the original mainly because of the positon of LED. Though finished model is not a copy of P1, I am happy with the result of realizing proper mid-engine proportion.
